Measuring devices and diagnostic equipment

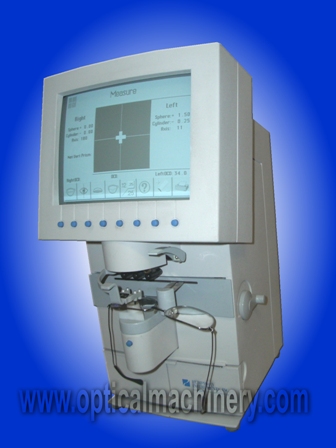

Auto Lensmeter MAR-6000
* Features: 1. Easy to use to control functions, conveniently located below the screen. 2.
Quick, accurate and easy operation for alignment and measurements. 3.Measure all types
of lenses made from all kinds of materials. 4.Able to measure single vision, bifocal and
progressive lenses. 5. Pupil Distance measurement. 6. English digital display selectable. 7.
Auto power saving mode. 8.Thermal Printer (optional). 9.Optional Ultra Violet transmission
check (optional).

Specifications:

Measurement Range

Minimum
Sph. Lenses :         0~ ± 25D         0.01D 、 0.12D 、 0.25D
Cyl. Lenses :         0~ ± 10D         0.01D 、 0.12D 、 0.25D
Cyl. Axial Angle:         0~180 °         1 °
Prism :         0~10 △         0.01 △、 0.12 △、 0.25 △
ADD :         0.10D         0.01D 、 0.12D 、 0.25D
Abbe Compensation numbers :         20 、 30 、 40 、 50 、 60
Lens Diameter :         Ø10mm~ Ø90mm

Auto Lensmeter MAR-2800
The quality is comparable with international main products. The speed of measurement and
displaying are fast, and it is very accurate. The accuracy of the astigmatism is abviously superior
to the like products, low reading lens of the measurement under 0.25D that can especially be
accurate. The equipment performance is steady and free from interruption by environmental light.
It can measure single vision lenses, bifocal (trifocal) lenses, Progressive Power Lenses(PPL),
Contact Lenses(CL), and the colored lenses(the sunglasses) that transmittance is above 10%,
also can measure the pupil distance, pupil height and lens diameter. The instrument is
accompanied with the UV measuring instrument and the thermosensitive printer.

Specifications:
1. Sphere: 0 to ± 25D (0.01D 、 0.12D 、 0.25D steps)
2. Cylinder: 0 to 10D (0.01D 、 0.12D 、 0.25D steps)
3. Axis: 0 to 180 ° (1 ° step)
4. Add: 0 to 10D (0.01D 、 0.12D 、 0.25D steps)
5. Prism: 0 to 10 △ (0.01 △、 0.12 △、 0.25 △ steps)
6. Step: 0.01D
7. PD: 80mm
8. Lens diameter: Max. approx. 120mm
9. UV: Outin UV
10. Compensation of: Abbe number range: 20 to 60 High index lenses
11. Measurable: >10% and over; (20% and over ± 15D to ± 25D)
12. TRANSMISSIVITY
13. Contact lenses: 0 to 25D, BC 6.00 to 9.00
14. Display: Full graphic LCD with back light (Black/White) 320*240(mm)
15. Printer: Built-in thermosensitive printer, paper size 38mm

Auto Lensmeter MAR-2100
* Features： Modern and fashion design inside uv measurement
quick measurement and accurate data auto memory and auto
screen save pd measurement and data
auto save measurement of various lenses.
Specifications:

1. Sphere: -25~+25D (0.01D 、 0.12D 、0.25D steps)
2. Cylinder: -0.99~+0.99D (0.01D 、 0.12D 、0.25D steps )
3. Axis: 0 to 180 ° (1 ° step)
4. Add: 0 to 9.99D (0.01D 、 0.12D 、0.25D steps )
5. Prism: 0 to 6 △ (0.01 △、 0.12 △、 0.25△ steps)
6. PD Measuring range:40~86mm unit 0.5mm
7. Diameter: ?5~120mm
8. Color LCD Display: LCD Monitor (5.7 inches)(5.7")
9. Printer: thermal printer
10. Power supply: AC 100~120V/
11. Dimensions: 220mm*320mm*430mm

Auto Lensmeter MAR-2600
* Features： Modern and fashion design inside uv measurement quick measurement
and accurate data auto memory and auto screen save pd measurement and data auto
save measurement of various lenses touched screen.

Specifications:

1. Sphere: -25~+25D (0.01D 、 0.12D 、0.25D steps)
2. Cylinder: -0.99~+0.99D (0.01D 、 0.12D 、0.25D steps )
3. Axis: 0 to 180 ° (1 ° step)
4. Add: 0 to 9.99D (0.01D 、 0.12D 、0.25D steps )
5. Prism: 0 to 6 △ (0.01 △、 0.12 △、 0.25△ steps)
6. PD Measuring range:40~86mm unit 0.5mm
7. Diameter: ?5~120mm
8. Color LCD Display: LCD Monitor (5.7 inches)(5.7")
9. Printer: thermal printer
10. Power supply: AC 100~120V/200~240V 50/60Hz 50VA
11. Dimensions: 220mm*320mm*430mm
12. Weight: 7 Kgs

Auto Chart Projector MAR-990
Features:
When Double locating, it would correct errors automatically; Offers more clear and share
pictures. It Increases the picture density; there are 8 icons in one line. The charts are bigger;
size 330mm*225mm(in 5m refraction) 5. Projected by wireless remote controller. 6. Able to
project the charts one by one. Standard accessories, the metal board is covered by bias
material.
Specifications:

1. Projection distance: 2-6m
2. Projection magnification: 30 × (in 5m refraction)
3. Projection size: 330 × 225mm, ø275mm (in 5m refraction)
4. Numbers of charts: 33
5. Chart change-over: 3 frame/sec
6. Numbers of masks: open 1, horizontal line 3, vertical line 8, single isolation 16, r and g 1
7. Tilt range: 10 ° horizontally as well as vertically
8. Projection lamp: 6V 20W (halogen lamp)
9. Automatic shut-off mechanism: 5 minutes
10. Electricity: AC 110V/60HZ or 220V/50HZ
11. Power consumption: 65W
12. Dimension: 196(W)×292(L)×234(H)mm.

Auto refractometer MAR-6500
* Features: 1. Auto fogging system high accuracy. 2.Auto PD measurement. 3. Vertes distance:
0, 12, 13.75mm. 4. Standard testing eye as standard accessory . 5.Easy, one-hand control: all
operations can be easily controlled with one hand through the control stick . 6. The cylinder,
time, step and so on can be set according to the customers'needs. 7. The only difference
between FA-6100 and FA6500 is the color, FA6100 is grey, FA6500 is light yellow.

Specifications:

1. Measuring Range：Sphere: -20~+20D(VD=12) 0.12D steps; Cylinder: -8~+8D 0.12D steps;
Axis: 0~180 ° 1 ° steps
2. Pupil Distance: 45~85mm, 1mm steps
3. Vertex Distance: 0mm, 12mm, 13.75mm
4. Min.Pupil Size: ?2.2mm
5. Chart: Auto fog
6. Display: 5 〞 CRT Monitor
7. Print: Thermal Printer
8. Power Supply: 100~120v/200~240v, 50/60Hz
9. Dimensions: 484(L)*282(W)*440(H)mm
10. Weight: ~20kgs

Refractor MAR-7000
Features: 1. Adopting concentrated operation and large scale and improving performance.
Automatical connection between cross-cylinder lens and lens coordinates.
Specifications:
1. Sphere power Range： +16.75 to –19.00 diopters Step: 0.25 diopters
2. Cylinder power Range： 0.00 to –6.00 diopters (0.00 to –8.00 diopters with additional lens of
–2.00 diopters) Step: 0.25 diopters
3. Cylinder axis： 0 to 180 ° , 5 ° steps
4. Cross cylinder： ± 25 diopters
5. Rotary prisms 0 △ to 20 △ , 1 △ steps
6. Auxiliary： (O)-Open aperture (two positions) lens dial; (R)-Retinoscopic lens, +1.50D ; (P)-
Polarizing lens 45 ° -left eye 135 ° -right eye ; (WMV) or (RMV)-Maddox rod, vertical white-left
eye red-right eye ; (WMH) or (RMH)-Maddox rod, horizontal white-left eye red-right eye ; (RL)-
Red lens ;(+.12)-+0.12D sphere; (PH)-Pin hole; (10 △ L) or (6 △ U)-10 △ base-in-left eye; 6 △
base-up-right eye ; (Dissociating prisms) ( ± .50)- ± 0.50 fixed cross cylinder ; (OC)-Occluder
7. P.D.adjustment： 48-75mm, 1mm steps
8. Standard accessory lenses： Two-.12D and –2.00 cylinder lenses, two plano lenses for sealing
front opening
9. Standard accessories： 1 near point card with holder and reading rod, dust cover, face shield,
accessory case for lenses
10. Dimensions： 318 × 293 × 96(mm)
11. Net weight： Approx 4.5kgs

Keratometer MAR-YZ38

Features: It can be used to measure the radius of cornea's curvature and dioptor. And it can
also be to measure the axis and dioptor of cornea astigmatism.

Specifications:

1. Measurement Range Curvature Radius: 5.5~11mm
2. Dioptor: 30~60D
3. Minimum Division: Radius: 0.02mm, Dioptor: 0.25D
4. Minimum Surface Required for R=7.5Mmm Φ2.36mm,
5. Measurement R=5.5 Φ1.65MM, R=11mm Φ3.36mm
6. Whole Packing Volume: 0.264m3
7. Carton Number: 2
8. Total Weight: 46kg

Slit Lamp Microscope MAR-YZ5F
Characteristics: 1. The optical lens are made of glass imported from Germany. 2. All the lens
are multi-coated, mildewproof and anti- reflection. 3. The adaptor for Applanation Tonometer
are universal..
Specifications:
1. Microssope Type: Converging Stereoscope
2. Magnification: three-step magnifications
3. Eye PEICE: 12.5x
4. Total Magnification and field of View(mm): 10 X (Ø 18 )、16 X ( Ø 14.5)、16 X ( Ø 11.25)、
25.6 X ( Ø 9)
5. Range of Pupil Distance (mm): 55 ~ 75
6. Adjustment of Disopter: -5D ~ +3D
7. Slit Width (mm): 0 ~ 9 adjustable
8. Slit Height (mm): 1~ 8 adjustable
9. Slit Angle: 0~180°
10. Slit Inclination: 5° 、10°、15°、20° , 4 ranges chosed
11. Light Spot Diameter (mm): Ø9、Ø8、Ø5、Ø3、Ø2、Ø1、Ø0.2
12. Filte: heat absorption, grey, redfree, cobalt blue
13. Illumination Bulb: 12V/30W halogen bulb
14. Voltage/ frequency: AC 220V ± 10%/60Hz ± 1Hz、AC 110V ± 10%/ 50Hz ± 1Hz
15. Power: 58VA
16. Electrical Safety Standard: Conform to Standard IEC 601-1.Class1Type B
17. Whole Packing Volume: 0.30m3
18. Carton Number: 2
19. Total Weight: 51kgs
20. Accessories: Applanation Tonometer (R type and T type), Measuring Eyepiece.
